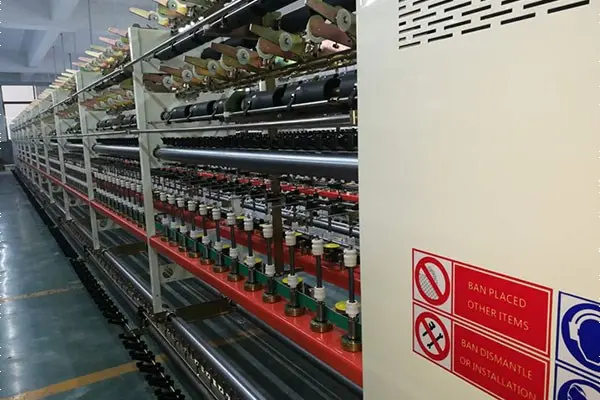

GCM-2000C Single Covering Machine

Product Description

Model of equipment

Unit of measurement

GCM-2000C 192 Spindle covering machine

Norm of machine

Seucture of machine



Single double-sided

Number of coiling layer

Layer

2

Number of wharve layer

Layer

1

Maximum coiling number of single covering

Position

192

Number of node

Node

8

Number of ingot per node

Position

24

Out-form dimensionL×W×H

mm

16400×1100×1640

Total weight of equipment

kg

4000

Spindle

Number of spindle

Spindle

192

Type of spindles



Fixed straight type/fixed conic type

Distance between spindles

mm

140

Mechanical spindle speed

rpm

15000

Twisting direction of spindle



S/Z

Range of twisting degree

Twist/m

200-3500

Capacity of wrapped filament

g

450-650

Wrapped filament bobbin



Φ84×Φ36×140

Coiling

Out-form of coiling



Double-cone integration

Out-form dimension of coiling

mm

Φ180×190

Size of coiling tube

mm

Φ68×218

MAximum coiling capacity

g

≤1500

Coiling formation



Mechanical formation/computerized formation

Mechanical formation/computerized formation

Drafting range

Multiple

1.5-6

Power of the motor

kw

11


The lates GCM-2000C boot binder is for covering the metallic by yarn in various specified single or dual layered wires and suitable for producing metallic yarn. The machine with frequency varied and speed regulating device is for adjusting the ingot’s rotation speed and saving up the electronic volume.

covering machine workshop


https://youtu.be/T38Nab_EkOw


covering machine change tube


https://youtu.be/evsXthnfnIA
