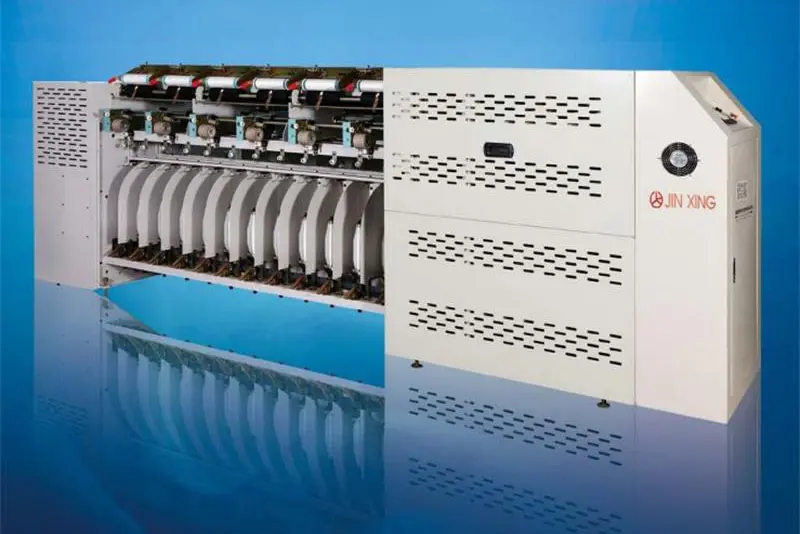

JX398B

Applicable to 30D~300D polyester,nylon and pp fiber long staples. Both the PLC-based control system and the servo-driving device are arranged to control the winding and yarn-guide mechanism, the winding mechanism and each transmission mechanism,effecting the on-the touch screen monitoring,controlling the main technical parameters of the spindle speed,the twist and the winding angle. The formation length is adjustable at will,It is allowed to set the parallelism, the trimming and the loose selvage formation method directly and change them easily to meet the technological requirements for different products.

Inquiry PDF Download Contact

Product Description

Performance characteristics:
It can be two-in-one, three-in-one, four-in-one, and can be adjusted freely according to customer requirements
Overfeeding adopts double-roller rollers to make the strands uniform
Servo-driven yarn guide traverses, using timing belt to reduce oil and ensure good quality
Precise positioning and reciprocating movement of the guide rod
It can be equipped with electronic thread detector to improve the quality and reduce the waste of raw yarn
Suitable for 30D~300D hemp, nylon, polypropylene and other long fibers, control the winding guide through the PLC control system and the servo drive device
The frame, capturing mechanism and various transmission mechanisms realize the main process parameters such as speed, twist and location on the touch screen.

It can be adjusted arbitrarily, and the styles of parallel, closed and loose edges can be set directly, which is convenient for change and meets the process requirements of different products

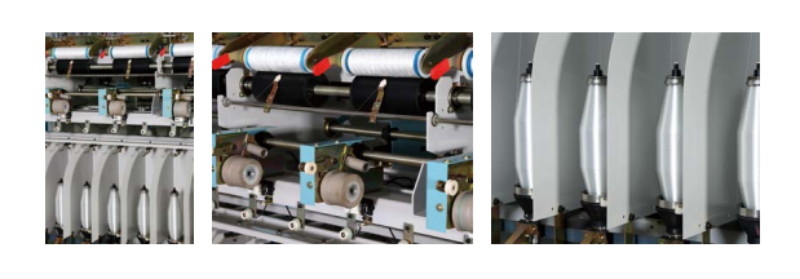

Features:
◇ It is possible to do two-in one, three-in one and four-in one by free adjustment according to customers’ requests.
◇ The double roller roller is applied for the overfeeding to achieve evenness and consistency of the plied yarns.
◇ The servo motor drives the yarn guide to move traversely.The synchronous belt is applied for transmission during the winding to reduce grease pollution so as to ensure a good positioning precision and a reciprocating movement for the yarn-guide rod.

◇ May mount electronic yarn detectors to elevate the yarn thread quality and reduce the raw yarn waste.
