Model of equipment |
Unit of measurement |

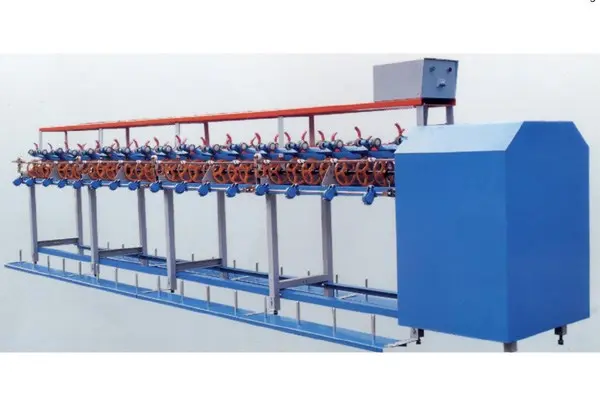

GBW-120 Horizontal cone winder |
|
Norm of machine |
||
|
Seucture of machine |
|
Vertical double-sided single-layer |
|
Number of node |
Node |
1~10 |
|
Number of ingot per node |
Position |
10 |
|
Out-form dimension（L×W×H） |
mm |
19000~12700×1200×1400 |
|
Weight |
kg |
1350（10节） |
|
Spindle |
||
|
Number of spindle |
Spindle |
10~100 |
|
Type of spindles |
|
Fixed straight type/fixed conic type |
|
Distance between spindles |
mm |
280 |
|
Winding wire-speed |
M/min |
300 |
|
Twisting direction of spindle |
|
S/Z |
|
The length of the winding |
mm |
100~140 |
|
Electric and power |
||
|
Winding molding |
|
Mechanical formation |
|
Cited yarn motor power |
kw |
1.5 |
|
Spindle motor power |
kw |
1.5 |
