GCM-2000 Double Covering Machine

Product Description

Model of equipment

Unit of measurement

GCM-2000E 384 Spindle covering machine

GCM-2000E 432 Spindle covering machine

Norm of machine

Seucture of machine



Dual-face dual-layer

Dual-face dual-layer

Number of coiling layer

Layer

2

2

Number of wharve layer

Layer

2

2

Maximum coiling number of single covering

Position

192

216

Maximum coiling number of dual covering

Position

192

216

Number of node

Node

8

9

Number of ingot per node

Position

48

48

Out-form dimensionL×W×H

mm

16800×1300×2030

18600×1300×2030

Total weight of equipment

kg

4500

4500

Spindle

Number of spindle

Spindle

384

432

Type of spindles



Fixed straight type/fixed conic type

Fixed straight type/fixed conic type

Distance between spindles

mm

140

140

Mechanical spindle speed

rpm

18000

18000

Twisting direction of spindle



S/Z

S/Z

Range of twisting degree

Twist/m

200-3500

200-3500

Capacity of wrapped filament

g

450-650

450-650

Wrapped filament bobbin



Φ84×Φ36×140

Φ84×Φ36×140

Coiling

Out-form of coiling



Double-cone integration

Double-cone integration

Out-form dimension of coiling

mm

Φ180×190

Φ180×190

Size of coiling tube

mm

Φ68×218

Φ68×218

MAximum coiling capacity

g

≤1500

≤1500

Coiling formation



Mechanical formation/computerized formation

Mechanical formation/computerized formation

Draftiong,electric and power

Drafting range

Multiple

1.5-6

1.5-6

Power of the motor of the upper spindle

kw

7.5

7.5

Power of the motor of the lower spindle

kw

11

11


Model GCM-2012 all computerized covered yarn machine is a new generation machine capable of producing high quality yarns with and extremely low production cost developed by this Co.on the basis of model GCM-2000 covered yarn machine, the imported latest European technology,the experience used with the famous international yarn works and the demand for the market to progress.
As an ideal yarn covering equipment for the high end tarn covering production,model GCM-2012 features a lower energy consumption, an extremely high productivity,a nice yarn quality, a flexibility capable of producing various kinds of yarns and an extremely simple operation. All the technical indexes of the products come first absolutely among the same domestic machines.

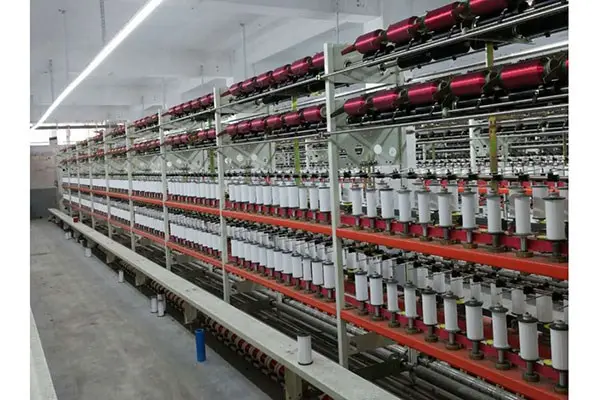

covering machine workshop


https://youtu.be/T38Nab_EkOw


covering machine change tube



https://youtu.be/evsXthnfnIA
