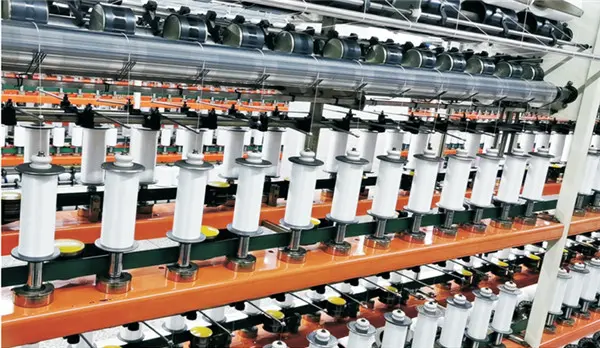

GCM-36Bcovering machine

Model GCM-36B covered -yarn machine is specially aimed at the elastic fabrics and applicable for the production of polyamide,polyester, cotton yarn etc.covered yarns of different norms, with the raw material application range at 70D-600D.

Product Description

Product Detail

Model  GCM-36B covered -yarn machine is specially aimed at the elastic fabrics and applicable for the production of polyamide,polyester, cotton yarn etc.covered yarns of different norms, with the raw material application range at 70D-600D.It holds a lower energy consumption and an extremely high productivity and its technical features stay at a great volume of wrapped filament, up to 1KG without joint, and the reduction of silk-on-tube-change process which used to be frequently done by the operator, enhancing the yarn quality and also reducing the operation.


Model of equipment

Unit of measurement

GCM-36B 324
Spindle covering machine



Norm of machine



Structure of machine



Dual-face dual-layer



Number of coiling layer

Layer

3



Number of wharve layer

Layer

2



Maximum coiling number of single covering

Position

162



Number of node

Node

9



Number of ingot per node

Position

36



Out-form dimension(L*W*H)

mm

18200*1300*2130



Total weight of equipment

Kg

4500



Spindle



Number of spindle

Spindle

324



Type of spindle



Fixed straight type/fixed conic type



DiStance between spindles

mm

175



Mechanical spindle speed

rpm

18000



Twisting direction of spindle



S/Z



Range of twisting degree

Twist/m

200-3500



Capacity of wrapped filament

g

450-650



Wrapped filament bobbin



Ф76*Ф36*Ф140



Coiling



Out-form of coiling



Double cone integration



Out-form dimension of coiling

mm

Ф180*140



Size of coiling tube

mm

Ф68*218



Maximum coiling capacity

g

≤1200



Coiling formation



Mechanical formation/computerized formation



Drafting, Electric and Power

 Ф68*Ф36*Ф140

Drafting range

Multiple

1.5-6



Power of the motor of the upper spindle

Kw

7.5



Power of the motor of the power spindle

Kw

7.5
