Model of equipment |
Unit of measurement |
GCM-2000A256 Spindle covering machine |
GCM-2000A288 Spindle covering machine |
|
Norm of machine |
|||
|
Seucture of machine |
|
Dual-face dual-layer |
Dual-face dual-layer |
|
Number of coiling layer |
Layer |
2 |
2 |
|
Number of wharve layer |
Layer |
2 |
2 |
|
Maximum coiling number of single covering |
Position |
256 |
288 |
|
Maximum coiling number of dual covering |
Position |
128 |
144 |
|
Number of node |
Node |
8 |
9 |
|
Number of ingot per node |
Position |
32 |
32 |
|
Out-form dimension（L×W×H） |
mm |
16400×1300×2030 |
18200×1300×2030 |
|
Total weight of equipment |
kg |
4500 |
5000 |
|
Spindle |
|||
|
Number of spindle |
Spindle |
256 |
288 |
|
Type of spindles |
|
Fixed straight type/fixed conic type |
Fixed straight type/fixed conic type |
|
Distance between spindles |
mm |
200 |
200 |
|
Mechanical spindle speed |
rpm |
18000 |
18000 |
|
Twisting direction of spindle |
|
S/Z |
S/Z |
|
Range of twisting degree |
Twist/m |
200-3500 |
200-3500 |
|
Capacity of wrapped filament |
g |
450-650 |
450-650 |
|
Wrapped filament bobbin |
|
Φ68×Φ36×140 |
Φ68×Φ36×140 |
|
Coiling |
|||
|
Out-form of coiling |
|
Double-cone integration |
Double-cone integration |
|
Out-form dimension of coiling |
mm |
Φ180×140 |
Φ180×140 |
|
Size of coiling tube |
mm |
Φ68×158 |
Φ68×158 |
|
MAximum coiling capacity |
g |
≤1200 |
≤1200 |
|
Coiling formation |
|
Mechanical formation/computerized formation |
Mechanical formation/computerized formation |
|
Draftiong,electric and power |
|||
|
Drafting range |
Multiple |
1.5-6 |
1.5-6 |
|
Power of the motor of the upper spindle |
kw |
7.5 |
7.5 |
|
Power of the motor of the lower spindle |
kw |
11 |
11 |

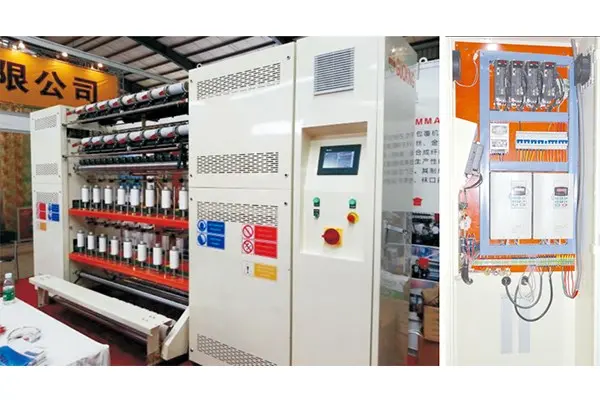

Model GCM-2000AZ real silk covered-yarn machine is a special covered-yarn machine developed by this Co.specially aimed at the real silk fabrics elastic satin and features a lower energy consumption, an extremely high productivity and yarn stability and a nice yarn formation. All the technical indexes of the products come frist absolutely among the same domestic machines and the products enjoy a market share up to 90%.
covering machine workshop
