Model of equipment

Unit of measurement

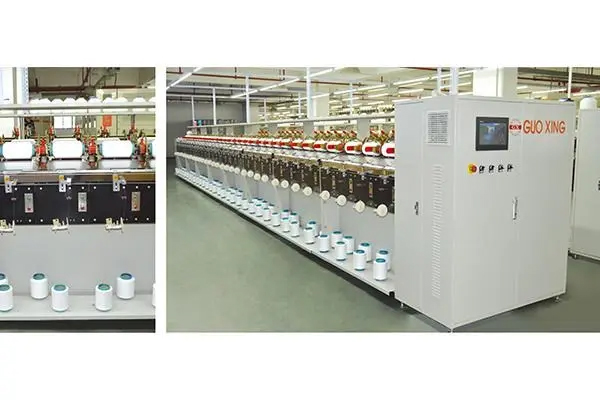

GX-120 Precise rewinder

Norm of machine

Seucture of machine

Vertical double-sided single-layer

Number of node

Node

1~8

Number of ingot per node

Position

8

Out-form dimension（L×W×H）

mm

2800~12400×1200×1400

Weight

kg

2000（8节）

Spindle

Number of spindle

Spindle

8~64

Distance between spindles

mm

350

Winding wire-speed

M/min

650

The length of the winding

mm

190

Electric and power

Winding molding

Computerized formation

Each table cited yarn motir power

kw

0.12

Each table cited take-up motir power

kw

0.09

Computer configuration

Imports of touch screen and PLC programmable program
