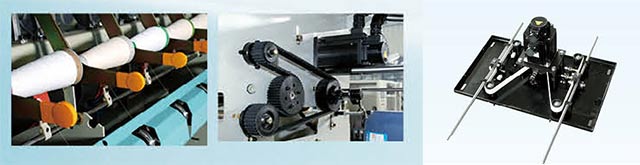

Servo-driving device and transmission gearbox are appplied transmission to improve the load on the tangential belt, the spindles and bearings.

Features:

• Saving energy and reducing consumption
• Maximum staple number can be added up to 192 spindles
• Compact machine body, reducing ground occupation
• Specificationized spindle and between-spindle distance formation. Spindle bobbin is available of 170,230,280mm for choice, Cost reduced, Benefit elevated.
• Adding the optional air ring cover allows to apply still higher spindle running velocity.
